French Drain Installation in Jacksonville
Heavy rain can saturate soil around a home. Poor drainage directs water toward the foundation and crawl space, where moisture may damage structural materials.
French drains intercept water and channel it away from vulnerable areas. We inspect drainage conditions and explain whether a French drain is appropriate for the property.
Signs You Need French Drain Installation
Several signs may indicate a drainage problem. Standing water in crawl spaces after rain means groundwater has nowhere to go. Dampness or water stains on foundation walls indicate moisture penetration. Musty odors in lower levels signal ongoing moisture issues even when you don't see visible water.
Exterior signs include persistently wet areas in your yard, water pooling near your foundation, or soil erosion around your home. These conditions direct water toward your foundation where it creates pressure against walls and seeps into crawl spaces.
Foundation cracks that appear or worsen after rain, efflorescence (white mineral deposits) on foundation walls, or increased humidity in your home all suggest drainage problems. The earlier you address these signs, the less damage water causes to your foundation and the easier repairs become.
Even without current problems, installing drainage systems during other foundation work provides insurance against future water damage. Prevention costs less than repairing damage after years of water intrusion.
Our French Drain Installation Process
1. Property Assessment
We start by looking at your property and understanding where water's coming from, where it's causing problems, and where it needs to go. We'll identify the slope, check soil conditions, look at existing drainage, and figure out the best approach for your situation.
2. Custom Design
Every property is different, so every French drain system we install is customized. We design the system based on your specific terrain, drainage challenges, and goals. We'll explain what we're recommending and why it makes sense for your property.
3. Professional Installation
We handle the entire installation—digging the trenches at the proper depth and slope, laying the pipe correctly, using appropriate gravel and filter materials, and making sure everything is connected and functioning properly.
4. Site Cleanup and Restoration
Once the drain is installed and tested, we backfill and restore the disturbed areas, leaving your property clean and the work site in good condition. You'll have a functioning drainage system without the mess.
5. Testing and Verification
Before we're done, we verify that the system is working—that water flows properly through the drain and exits where it's supposed to. You'll see for yourself that the problem is solved.
The whole process is usually completed in one to two days for most residential installations, depending on the size and complexity of the system.
Why Choose Foundations First Florida
Foundation and crawl space work is our specialty, not a side service.
We focus exclusively on foundation repair, waterproofing, and related services. This specialization means we understand how French drains integrate with foundation repairs, crack sealing, and moisture control systems. Our installations protect your home's structure, not just manage surface water.
Every installation is warrantied, giving you confidence in our work. We offer financing options to make necessary foundation protection accessible when your home needs it. Our goal is solving your water problems completely with systems that perform reliably for decades.
Serving Jacksonville and the Surrounding Area
Foundations First Florida serves homeowners in Jacksonville and the surrounding area. Every property is different, and drainage concerns need to be assessed at the home.
If water collects near your foundation or leaves parts of your yard soggy after rain, we can look at where the water is coming from and discuss whether a French drain is an appropriate option.
Our French Drain Installation Process
French drain effectiveness depends entirely on correct installation. Improper slope allows water to pool instead of flowing to discharge points. Insufficient gravel restricts water flow into the system. Wrong pipe types or poor connections create failure points where systems clog or leak.
Crawl Space French Drain Installation
Prep for install: Locate the area where the drainage system will be installed per the sketch. Look for the highest point and the lowest point of the crawl space. The lowest point will be where the drain ends and the highest is where you want to start the drain.
At the high point, start digging a trench about 4 inches in depth. Trenching towards the low point, you will want to have at least a 1% fall every 10ft.
Installation: Once the trench is all dug out, set the perforated sock pipe in the trench (doesn’t matter if you start from the high or low point). Make sure the pipe has a fall/slope, you can do this by using a level or doing a flood test. *Spread the dirt from digging the trench in the crawl away from the trench if you can, otherwise you may have to remove it from the site. Based on the soil, install a thin base layer of clean river rock.
Once the pipe is set and made sure it has fall, backfill the trench with clean river rock.
Tools Needed
- Shovel/hammer/digging pick
- Level
- Bucket(s)
- Hose/nozzle
- Tape measure
Material Needed
- Clean river rock
- Perforated socked pipe

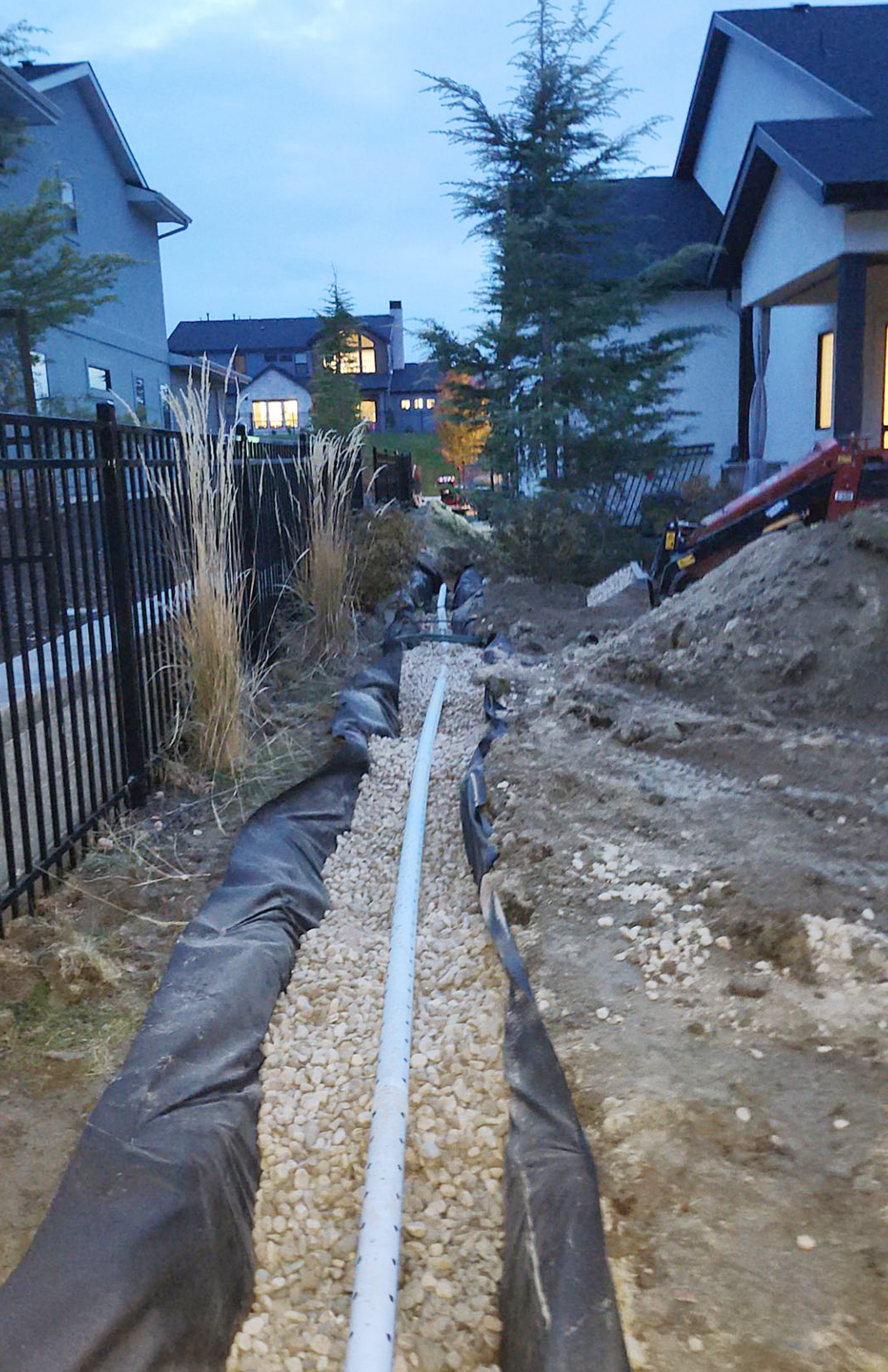

Exterior French Drain Installation
Installing a French drain exterior is similar to a crawl space install. Before digging, make sure you’re not running into any water, gas, or power lines.
- Trench dig exterior where the drain pipe is going to be installed per sketch. The trench should be about 12”-18” deep and 9” wide. The trench should have a 1% fall.
- Depending on what was sold, we will have either a catch basin discharge or a pop-up discharge at the end of the French drain system.
- Once the trench is all prepped, lay down a small base layer of clean river rock.
- Install the basin/pop-up.
- Drill ¼” holes around the bottom and sides of the basin.
- Set the pipe in the trench and make sure it has fall (flood test).
- Connect the pipe to the discharge (pop-up/catch basin).
- Back-fil the trench/ discharge with clean river rock (unless specified, relocate/remove dirt from the site).
- If installing triple wall pipe then landscaping fabric will need to be installed before any river rock is laid down. If installing perforated sock pipe is to be installed, you don’t need the landscape fabric.
Tools Needed
- Shovel/pickaxe
- Tape measure
- Drill/bit(s)
Material Needed
- Pipe (perf socked or triple wall)
- Clean river rock
- Pop-up/catch basin discharge
- Landscape
